Gale MK II Heavy Duty Exhaust Fan
Compact heavy-duty ventilation · 380 & 450 mm sizes · Single Phase · Up to 5,500 m³/hr air delivery
Available Sizes
Key specifications
- Sweep
- 450 mm / 18"
- Speed
- 1400 RPM
- Power Input
- 143 / 375 W
- Air Delivery
- 3,900 / 5,500 m³/hr
Product Highlights
-
Heavy-Duty Totally Enclosed Motor: Designed around a totally enclosed motor construction for demanding exhaust and ventilation applications.
-
Up to 5,500 m³/hr Air Delivery: The 450 mm MK II configuration provides air delivery up to the published 5,500 m³/hr specification.
Need Gale MK II fans for a bulk or project requirement? Share your size and quantity with our team.
Features
Gale MK II provides the core construction of AVM heavy-duty exhaust range in 380 mm and 450 mm configurations.
- Heavy-Duty Totally Enclosed Motor
- Aluminium Motor Body with Fins
- Capacitor Start & Run Induction Motor
- Copper Winding
Technical Specifications
Gale MK II performance.
| Size | Supply | Speed | Input Current | Power Input | Air Delivery | Size A | Size B |
|---|---|---|---|---|---|---|---|
| 380 mm / 15" MK II | Single Phase, 50 Hz | 1400 RPM | 0.45 / 0.75 A | 100 / 170 W | 2,000 / 3,000 m³/hr | 483 mm | 475 mm |
| 450 mm / 18" MK II | Single Phase, 50 Hz | 1400 RPM | 0.65 / 1.70 A | 143 / 375 W | 3,900 / 5,500 m³/hr | 560 mm | 450 mm |
The published MK II table gives paired current, wattage and air-delivery values for each size while showing one 1400 RPM speed. Confirm the required model while placing your enquiry.
Download full spec sheet (PDF · 480 KB)Configurations
Also Available
Additional configurations are available for specific requirements.
-
110 V Single Phase 60 Hz
-
380 / 400 / 440 V, 60 Hz
-
CB Scheme Certified Model
-
Resettable Thermal Protector
-
Guard & Louvers
-
Reversible Fan
Need a Gale MK II requirement?
More about
Gale MK II - Compact Heavy-Duty Exhaust Ventilation
The Gale MK II Heavy Duty Exhaust Fan brings AVM industrial exhaust-fan construction to focused 380 mm and 450 mm size options.
Ideal Applications
Heavy-Duty Exhaust for Compact Industrial Installations
-

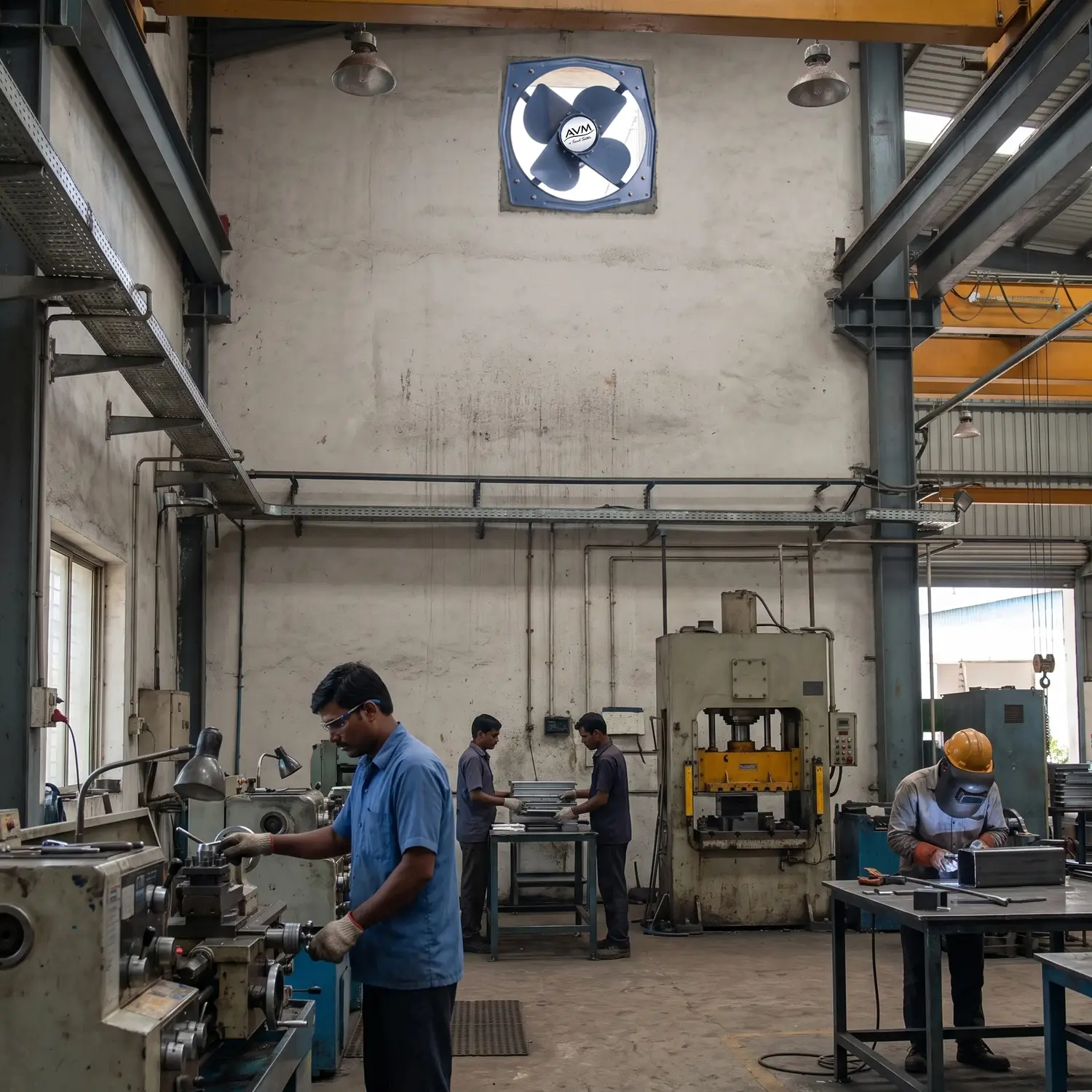

Workshops
Effective exhaust ventilation for enclosed working spaces where heat accumulates.
-
Manufacturing Areas
Suitable for general extraction and air exchange around production environments.
-
Industrial Units
A 380 or 450 mm solution for facilities that do not require the larger Gale sizes.
-
Warehouses
Supports ventilation in storage and operational areas.
-
Equipment Rooms
Suitable for general heat and stale-air extraction from enclosed equipment spaces.
-
Commercial Back-of-House Areas
Heavy-duty ventilation for service and operational spaces where metal exhaust-fan construction is preferred.
FAQ
Frequently Asked Questions
Common questions about Gale MK II Heavy Duty Exhaust Fan, available configurations, and industrial applications. Don't see yours? Talk to our team.
What sizes are available in Gale MK II?
The published Gale MK II range is available in 380 mm (15") and 450 mm (18") configurations.
Is Gale MK II a Single Phase fan?
The standard models currently published by AVM are Single Phase, 50 Hz configurations.
What is the maximum air delivery of Gale MK II?
The highest value currently published is 5,500 m³/hr for the 450 mm model.
What is the difference between Gale and Gale MK II?
Gale is AVM broader heavy-duty exhaust range covering 300-600 mm with Single and Three Phase configurations, while Gale MK II currently covers 380 and 450 mm Single Phase configurations. Their published technical performance tables are also different.
Does Gale MK II use a totally enclosed motor?
Yes. AVM specifies a heavy-duty totally enclosed motor with an aluminium finned motor body.
Does Gale MK II use copper winding?
Yes. Copper winding is part of the published motor specification.
Are special voltage or frequency configurations available?
Yes. AVM lists 110 V Single Phase 60 Hz and 380/400/440 V 60 Hz options.
Can Gale MK II be supplied with guard and louvers?
Yes. AVM lists a configuration with guard and louvers among the available options.
Heavy-Duty Ventilation in 380 & 450 mm Sizes
Enquire About the Gale MK II
Share your required size, quantity, application and electrical requirement with our team for product and pricing assistance.
