Wall Mounted Fans · Industrial
Enlil Wall Mounted Air Circulator
Heavy-duty wall-mounted airflow · 450-750 mm sweep · Up to 22,200 m³/hr air delivery · Single & Three Phase options
Available Sizes
Key specifications
- Sweep
- 450 mm
- Air Delivery
- 7,500 m³/hr (125 CMM)
- Speed
- 1440 RPM
- Power Input
- 100 W
Product Highlights
-
High-Volume Air Circulation: Delivers from 7,500 to 22,200 m³/hr depending on the selected sweep size.
-
Space-Saving Wall Installation: Provides powerful industrial air movement while keeping valuable floor space clear.
Need bulk pricing or a custom spec? Our team responds to enquiries within one business day.
Features
Heavy-duty air movement without using floor space.
- Capacitor Start & Run Induction Motor
- Copper Winding
- Class F Insulation - 155°C
- Sealed Double Ball Bearings with P6 Tolerance
Technical Specifications
Enlil Wall Mounted Air Circulator performance.
| Size | Phase | Speed | Current | Power Input | Air Delivery | Peak Air Velocity | Noise |
|---|---|---|---|---|---|---|---|
| 450 mm / 18" | Single | 1440 RPM | 0.45 A | 100 W | 7,500 m³/hr | 250 m/min | 64 dBA |
| 600 mm / 24" | Single | 1440 RPM | 0.70 A | 150 W | 15,000 m³/hr | 250 m/min | 68 dBA |
| 750 mm / 30" | Single | 1440 RPM | 1.15 A | 250 W | 22,200 m³/hr | 250 m/min | 74 dBA |
| 600 mm / 24" | Three | 1440 RPM | 0.40 A | 200 W | 15,000 m³/hr | 250 m/min | 68 dBA |
| 750 mm / 30" | Three | 1440 RPM | 0.55 A | 250 W | 22,200 m³/hr | 250 m/min | 74 dBA |
Wall-mounted configuration excludes pedestal height and pedestal base specifications.
Download full spec sheet (PDF · 480 KB)Configurations
Also Available
Additional configurations are available for specialised industrial, OEM and export requirements.
-
Power Saver Model
-
Finger-Proof Guard
-
110V / 220V, 60 Hz Models
-
Customised Colour Combinations for MOQ Orders
-
Motor with Inbuilt Resettable Thermal Protector
-
450 / 600 / 750 mm Models in 900 RPM
-
Fully Enclosed Motor for Dusty Environments and Poultry Farms
-
IEC 60335-1 & 2 CB Scheme Certified Model
Need a configuration not listed?
More about
Enlil Wall Mounted Air Circulator - Powerful Airflow, Clearer Floor Space
The Enlil Wall Mounted Air Circulator brings the high-volume airflow of AVM Enlil industrial range to a fixed wall-mounted installation.
Ideal Applications
Powerful Wall-Mounted Airflow for Industrial Spaces
-

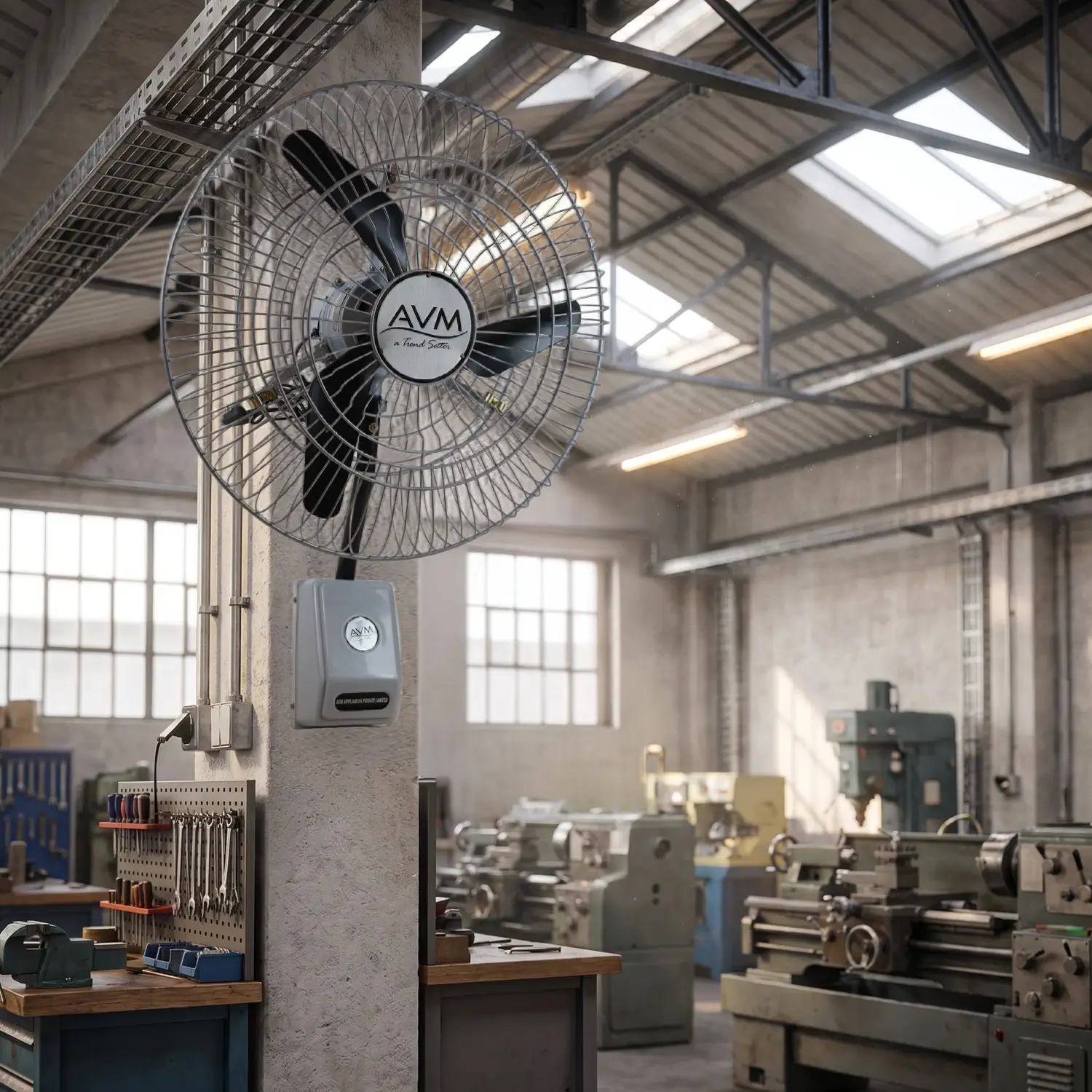

Factories
Wall-mounted high-volume circulation across production and assembly areas.
-
Warehouses
Strong airflow without occupying storage or movement space.
-
Workshops
Directional air movement around machinery and workstations.
-
Industrial Sheds
High-volume circulation in large industrial environments.
-

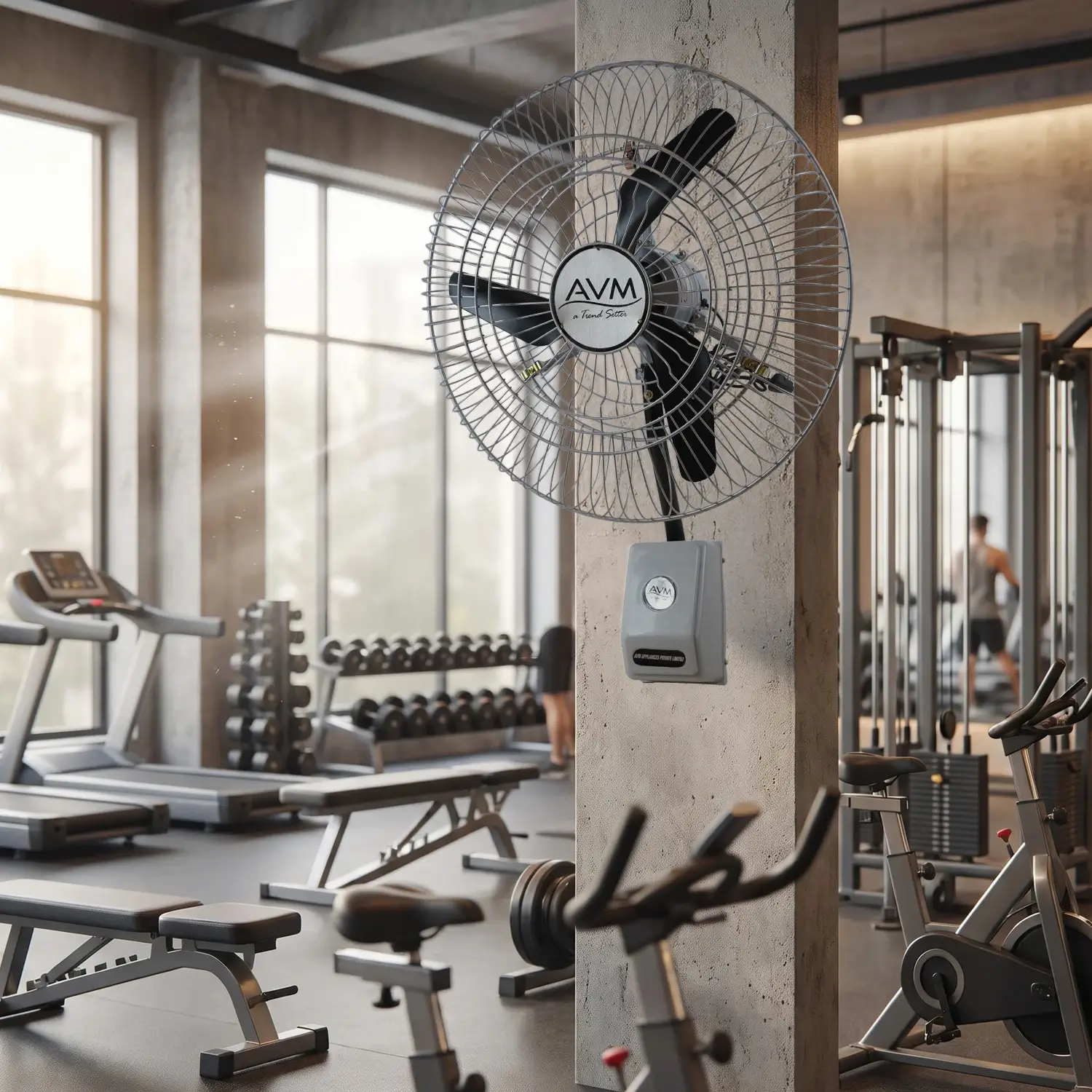

Gyms & Sports Facilities
Wall-mounted airflow across larger high-occupancy areas.
-
Poultry & Agricultural Facilities
Special fully enclosed motor configurations are available for dusty environments.
FAQ
Frequently Asked Questions
Common questions about Enlil Wall Mounted Air Circulator, available configurations, and industrial applications. Don't see yours? Talk to our team.
What sizes are available?
450 mm, 600 mm and 750 mm.
What is the maximum air delivery?
Up to 22,200 m³/hr in the 750 mm configuration.
Is Enlil available in Three Phase?
Yes. Three Phase configurations are available in 600 mm and 750 mm sizes.
Is the performance different from the pedestal Enlil?
The fan-head performance specifications remain the same for the equivalent sweep and electrical configuration. The key difference is the mounting arrangement.
Does the wall-mounted Enlil oscillate?
Yes. The published product construction provides up to 85° oscillation and indexing up to 360°.
Industrial Airflow Without Taking Up Floor Space
Enquire About the Enlil Wall Mounted Air Circulator
Share your required sweep size, phase, quantity and application with the AVM team.
